Dynatrace Reporting Pipeline

This report is containing all services (MRP) with tag starting from "[Kubernetes]app.bmwgroup.com/"

---

Jenkins environments

EMEA & NA: https://jaws.bmwgroup.net/opapm/

CN: https://jaws-china.bmwgroup.net/opmaas/

Request access

Access is granted manually through stephan.oertelt@bmw.de and Mohammed.Abadel@bmw.de

Multi-Branch Pipelines

• master (=latest) --> for testing and developing stuff
• staging --> pre-release branch, if stuff tested successfully here merge it to production
• production --> actively used, productive reports

---

Minimum Content of a Dynatrace Reporting Repo

Repository & Pipeline Naming

• Repository and Pipelines must have identical names
• Naming must start with CoCo_APM_Reporting_report name here

readme-File

The readme file must contain a useful description what is reported when to whom

Example:

This report is reporting all installed OneAgent versions including:

• Hostnames
• Environment Tag
• PaaS Tag

Sent to: coco-apm@bmw.de

Executed on each Monday of every week
Executed on every Dynatrace environment

requirements.txt

The requirements.txt file must contain all python packages which are used within the script through import

e.g.:

pyyaml
pandas
decouple
requests
datetime
argparse

environments.yaml

The environments.yaml contains all environments on which the script should be executed, environments which should not be executed may be excluded through #

Do NOT change the environments names, the pipeline script is configured to distingue between EMEA/NA and CN as their are different Jenkins environments!

The following snipped shows an environment file, which is only executed on Dynatrace prod environments.

euprod:
    - name: "euprod"
    - env-url: "https://xxu26128.live.dynatrace.com"
    - env-token-name: "EUPROD_TOKEN_VAR"
#eupreprod:
    - name: "eupreprod"
    - env-url: "https://qqk70169.live.dynatrace.com"
    - env-token-name: "EUPREPROD_TOKEN_VAR"
#napreprod:
    - name: "napreprod"
    - env-url: "https://onb44935.live.dynatrace.com"
    - env-token-name: "NAPREPROD_TOKEN_VAR"
naprod:
    - name: "naprod"
    - env-url: "https://wgv50241.live.dynatrace.com"
    - env-token-name: "NAPROD_TOKEN_VAR"
cnprod:
    - name: "cnprod"
    - env-url: "https://dynatracemgd-cn.bmwgroup.net/e/b921f1b9-c00e-4031-b9d1-f5a0d530757b"
    - env-token-name: "CNPROD_TOKEN_VAR"
#cnpreprod:
    - name: "cnpreprod"
    - env-url: "https://dynatracemgd-cn.bmwgroup.net/e/b921f1b9-c00e-4031-b9d1-f5a0d530757b"
    - env-token-name: "CNPREPROD_TOKEN_VAR"

Jenkinsfile

The Jenkinsfile is the pipeline script itself including:

• Time-Trigger
• Install package step
• Execute script step
• Send Mail step

Python Script

The script itself will gather and aggregate the data from the Dynatrace environments.

Script output must be a csv or excel file in the folder where the script is executed

---

First Usage - Create a new Pipeline

Fork this repo

Do NOT clone this repo, create a fork instead.

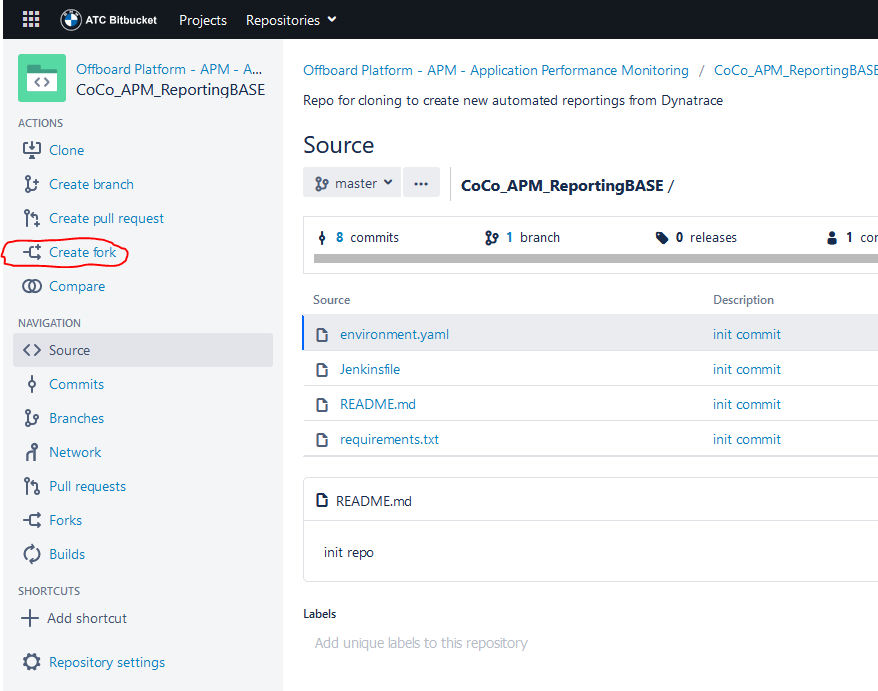

1. On the left menue bar click on Create fork

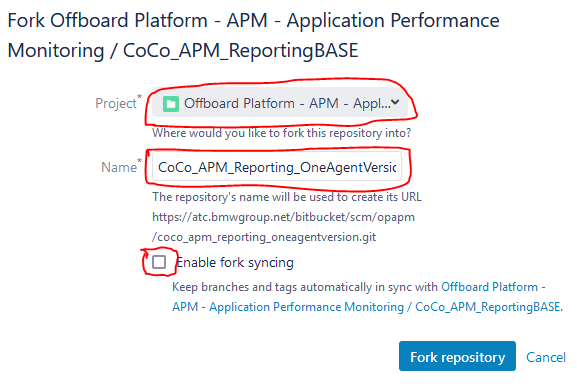

2. Choose Project Offboard Platform - APM - Application Performance Monitoring
3. Choose a name starting with CoCo_APM_Reporting_ and a useful suffix
4. Uncheck Enable fork syncing

5. Edit readme.md and describe your report
6. Change/Update the environment, requirements and script according to your needs
7. Login to Jenkins and select the folder Coco APM Reporting

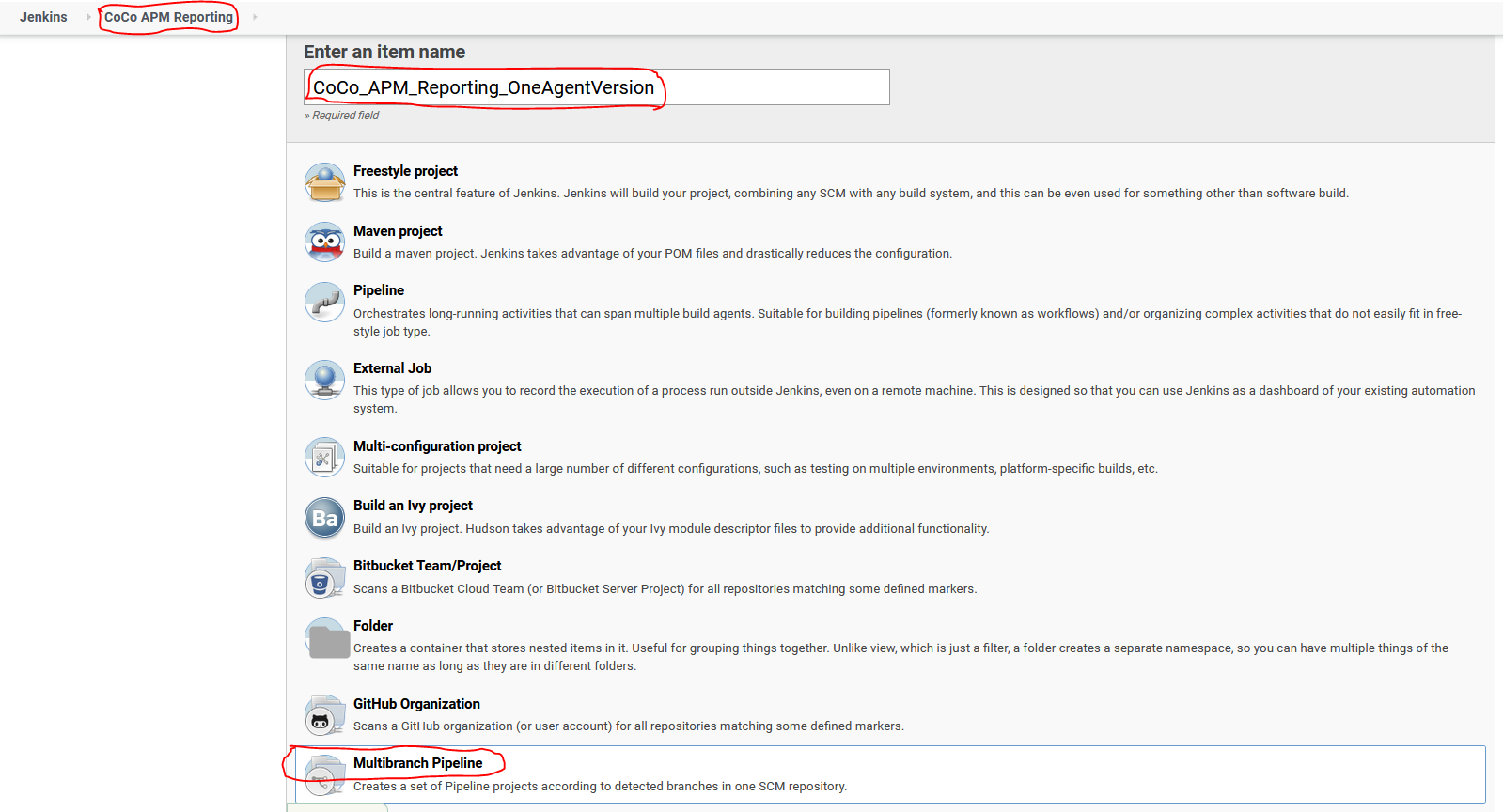

8. Click the New Item Button
9. Enter the name of your repo (e.g. CoCo_APM_Reporting_OneAgentVersion)
10. Select Multibranch Pipeline
11. Click OK Button

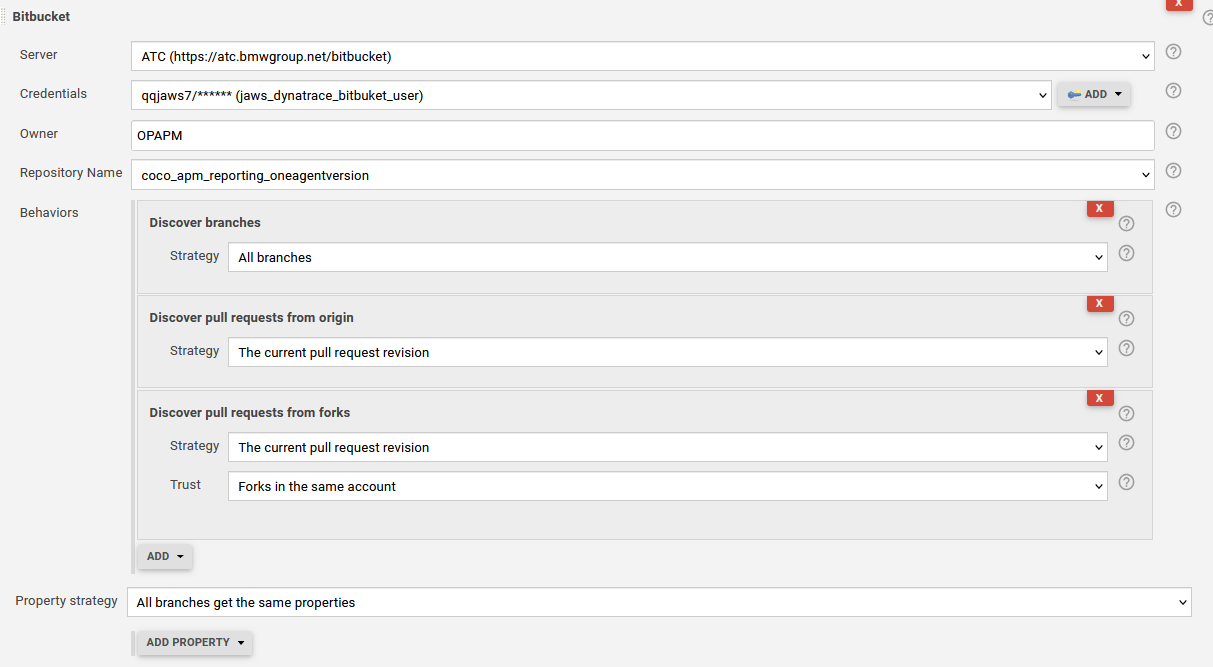

12. On The Pipeline Settings go to Branch Sources, click ADD SOURCE and select Bitbucket

• Server: ATC
• Credentials: qqjaws7
• Owner: OPAPM
• Repository Name: your forked repository
• Behavious: According to screenshot


Your pipeline will automatically test-run for all 3 branches.
